A building spends roughly 20% of its lifetime cost on design and construction — and the remaining 80% on operation and maintenance. BIM for building maintenance is how you take the intelligent model you already paid to create and put it to work through that long, expensive second life: turning a static 3D geometry into a living asset database that tells your facility team what every pump, damper and valve is, where it sits, when it was last serviced and what it will cost to replace. This guide is the practical, operations-focused companion to our broader guide to BIM in facility management: here we go deep on the maintenance and O&M side specifically. This guide covers how BIM for building maintenance works — the 6D workflow, the standards that keep the data usable, realistic timelines and ROI, the failure modes nobody warns you about, and a worked KSA/UAE example.
- What BIM for building maintenance actually means
- Why traditional building maintenance falls short
- How BIM transforms maintenance management
- The BIM-FM workflow, step by step
- Beyond maintenance: space, energy & compliance
- Digital twins, IoT & sensors for live maintenance
- Existing buildings: scan-to-BIM & timelines
- Key benefits and realistic ROI
- When BIM fails to support maintenance
- A practical adoption roadmap
- A worked KSA & UAE example
- Common barriers to adopting 6D BIM
- Frequently asked questions
What Is BIM for Building Maintenance?
BIM for building maintenance is the use of a data-rich Building Information Model during the operational phase of a building’s life — after the contractors have left — to plan, schedule and execute maintenance more accurately and at lower cost. Instead of hunting through paper O&M manuals and mismatched CAD files, the facility team works from a single 3D model where every serviceable component carries structured data: manufacturer, model number, installation date, warranty expiry, spare-part references, service intervals and location.
You will often see this called 6D BIM. The BIM dimensions build on each other: 3D is geometry, 4D adds construction scheduling (time), 5D adds cost, and 6D adds the facility-management and lifecycle information used to run the building after handover. Some frameworks push further to 7D for full lifecycle and sustainability management, but the label matters less than the substance — a model is “FM-ready” only when its data is accurate, structured and handed over in a format your maintenance software can read.
Why Traditional Building Maintenance Falls Short
In a conventional handover, the owner receives boxes of PDF manuals, redline drawings that may not match what was actually built, and asset lists in spreadsheets that were never reconciled with the design. Within a few years, staff turnover erases whatever institutional memory filled the gaps. The result is a maintenance operation that is fundamentally reactive:
- Slow fault-finding. A technician needs to trace a chilled-water line or locate an isolation valve above a ceiling — and spends an hour with drawings that don’t match reality.
- No reliable asset register. Nobody knows exactly how many air-handling units exist, what they are, or when they were last serviced.
- Reactive, not preventive. Equipment runs to failure because service intervals live in someone’s head, not in a system.
- Expensive rework and downtime. Wrong spare parts get ordered; critical assets fail during peak load; warranty claims lapse because installation dates were lost.
Because operation and maintenance dominate a building’s whole-life cost, small inefficiencies here compound into very large numbers over a 25–50 year service life. BIM for building maintenance attacks the root cause: it makes the building’s data trustworthy, findable and connected to the tools your team uses every day.
How BIM for Building Maintenance Transforms Maintenance Management
The shift from a set of documents to a connected model changes the day-to-day economics of BIM for building maintenance. Below is the difference in practice.
| Maintenance task | Traditional process | BIM-enabled process |
|---|---|---|
| Locating an asset | Search paper drawings and PDFs, often outdated | Click the component in the model; see exact location and data instantly |

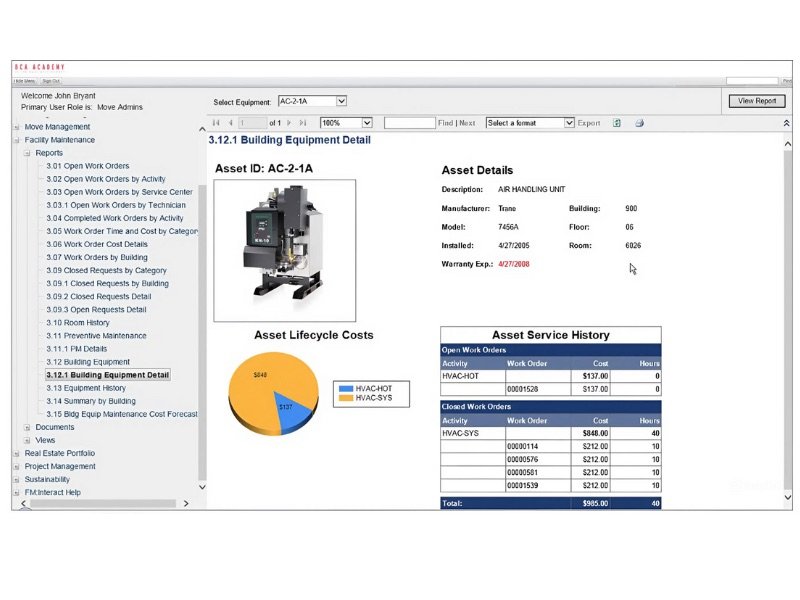

| Asset register | Incomplete spreadsheets, manually maintained | Structured, model-linked register that stays in sync |
| Preventive scheduling | Manual, based on memory or generic intervals | Service intervals attached to each asset, pushed to the CMMS |
| Spare parts | Guesswork; wrong parts ordered | Manufacturer and part references stored per asset |
| Space & access | Physical site visit to assess | Virtual navigation and clash-free access planning |
| Handover knowledge | Lost with staff turnover | Retained permanently in the model |
Preventive vs. predictive maintenance
BIM for building maintenance supports both, and the distinction matters for how much you invest:
- Preventive maintenance is calendar- or usage-based: service each asset on a fixed interval. BIM makes this reliable by attaching the correct interval to every asset and feeding it to your maintenance system so nothing is forgotten.
- Predictive maintenance is condition-based: act when data shows a component is drifting out of normal range. This needs the BIM model connected to live sensor or building-automation data (see digital twins below). It is more powerful but requires more infrastructure, so most teams start preventive and layer predictive onto critical assets later.
The BIM for Building Maintenance Workflow in Action
Getting from a construction model to a working model for BIM for building maintenance is a defined process, not a switch you flip. The four stages below are where AMC Engineer spends most of its FM-enablement work.
1. Build or validate an as-built BIM model
The model has to reflect what was actually installed, not what was designed. For new projects this means updating the coordinated model with site changes before handover. For existing buildings it means scan-to-BIM — laser scanning the facility and modelling from the point cloud (covered in detail below).
2. Assemble the disciplines and tag the assets
Architectural, structural and — most importantly for maintenance — MEP models are federated into one coordinated model. Every serviceable component is tagged and classified so it can be found and grouped: HVAC units, pumps, fire dampers, electrical panels, valves and sensors. Consistent classification (for example Uniclass or OmniClass) is what lets you later ask the model “show me every fire damper due for inspection this quarter.”
3. Connect the model to an FM platform
The model is linked to the software your team actually operates in — a CMMS (Computerized Maintenance Management System), CAFM (Computer-Aided Facility Management) or IWMS (Integrated Workplace Management System). The BIM authoring tool (Revit) is not where maintenance happens; it is the source of truth that populates the operational platform. Keeping those roles separate is one of the biggest predictors of success.

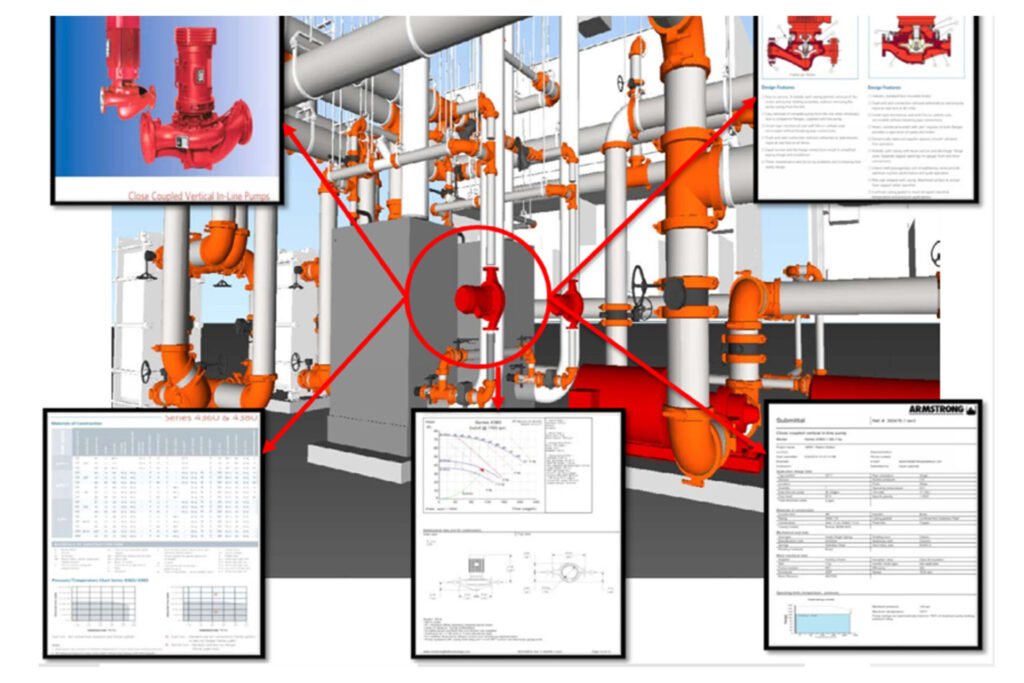

4. Attach documents and structured data (COBie)
Warranties, O&M manuals, spec sheets and commissioning records are attached to their assets, and asset data is exchanged in a structured format — most commonly COBie (Construction-Operations Building Information Exchange), a spreadsheet-based schema that carries the non-graphical information FM needs. This structured data drop is the heart of BIM for building maintenance. It is the data handover that ISO 19650 governs — and its Part 3 deals specifically with the operational phase.
Not sure your handover model is actually FM-ready?
AMC Engineer audits and enriches as-built models for facility operation across KSA and the UAE — asset tagging, COBie data drops and CMMS integration. We’ll send you a free LOD 200 sample from your own drawings within 24 hours.
Beyond Maintenance: Space, Energy & Compliance
BIM for building maintenance rarely lives in isolation. The same model that runs your preventive schedule also unlocks three adjacent wins that facility owners care about:
- Space management. Accurate room and area data lets you track occupancy, plan moves and reconfigure space without a site survey each time — useful for offices, retail and multi-tenant complexes.
- Energy and ESG. Linking the model to consumption data helps target the biggest energy users, verify efficiency upgrades, and support ESG and green-building reporting — an increasing requirement for large assets in the Gulf.
- Safety, compliance and emergency response. A model that knows where every fire damper, extinguisher and isolation point sits speeds inspections, supports civil-defence compliance and gives responders a navigable map of the building.
These are the operational threads that connect building maintenance to full facility management and to construction asset management, where the goal shifts from “fix things” to “maximise return across the asset’s lifecycle.”
Digital Twins, IoT & Sensors for Live Maintenance
A BIM model is a structured snapshot; a digital twin is that model kept alive with real-time data. When you connect IoT sensors and the building-automation system (BAS) to the model, maintenance moves from scheduled to responsive:
- A chiller reporting rising outlet temperature triggers a work order before it fails during a summer peak.
- Vibration or runtime data on pumps and motors flags wear early, so parts are ordered ahead of failure.
- Occupancy and air-quality sensors let HVAC run to actual demand rather than a fixed schedule, cutting energy and wear at once.
The digital twin is where predictive maintenance actually becomes real. It is not a prerequisite for getting value from BIM in maintenance — plenty of owners get strong returns from a well-structured 6D model and preventive scheduling alone — but it is the natural next step for BIM for building maintenance on critical or energy-intensive assets.
BIM for Existing Buildings: Scan-to-BIM & Timelines
The most common question from owners is: “Our building is already built and we have no usable model — is BIM for building maintenance even possible?” Yes. The route is scan-to-BIM: a laser scan (or photogrammetry) captures the as-is condition as a point cloud, and the maintenance-relevant model is built from it.
The key decision is how much to model. You do not need a museum-grade replica of the whole building. You need the assets and systems your maintenance team will actually manage — typically MEP systems, plant rooms, risers and serviceable equipment — at a level of information that supports your use cases.
| Building type | Typical scan-to-BIM approach | Indicative timeline* |
|---|---|---|
| Single mid-size building (e.g. office/clinic) | Scan + MEP-focused as-built model | 3–6 weeks |
| Large complex or mall | Phased scan, plant rooms and MEP first | 2–4 months, phased |
| Multi-building portfolio | Standardised template, rolled out building by building | Ongoing programme |
*Indicative only. Real timelines depend on building size, access to plant areas, the level of information required and how much existing documentation can be reused. Treat these as planning ranges, not quotes — a walkthrough and a defined scope of maintenance use cases are what produce an accurate schedule.
Key Benefits of BIM for Building Maintenance (and Realistic ROI)
The benefits of BIM for building maintenance are well established across the industry; the honest framing is that most of them are enablers that pay back over the building’s life rather than overnight:
- Faster fault-finding and response. Technicians locate assets and isolation points in the model instead of on site, cutting diagnosis time.
- Fewer emergency failures. Reliable preventive scheduling shifts spend from costly reactive repairs to planned work.
- Lower whole-life cost. Because O&M dominates lifecycle cost, even modest efficiency gains compound significantly over decades.
- Extended asset life. Assets serviced on time and replaced on evidence, not panic, last longer.
- Protected warranties and knowledge. Installation dates, warranties and service history are retained permanently, surviving staff turnover.
When BIM Fails to Support Maintenance (Failure Modes)
Being straight about this builds trust — and helps you avoid an expensive disappointment. BIM for building maintenance under-delivers in predictable ways:
- Geometry without data. A beautiful high-LOD model with empty asset parameters is useless to a technician. Information matters more than polygon count.
- Handover in a format nobody can read. If the data doesn’t land in your CMMS/CAFM in a usable structure, the model becomes shelfware.
- No owner of the model. If nobody is responsible for updating the model as assets are replaced and spaces change, it goes stale within a year.
- Modelling everything. Over-modelling wastes budget on detail no one maintains. Scope to your actual use cases.
- Tool confusion. Trying to run daily maintenance inside the authoring tool instead of a proper operational platform frustrates the team.
Every one of these is avoidable with the right scope, the right standards (ISO 19650 and a clear information-requirements document) and a defined owner for the model after handover.
A Practical Adoption Roadmap (Start Small → Scale)
You do not need to model an entire portfolio before seeing value. A staged approach to BIM for building maintenance de-risks the investment:
- Assess. Inventory what you already have — drawings, models, asset lists — and where the biggest maintenance pain is.
- Define use cases and information requirements. Decide what the model must answer (asset location, service intervals, spares) before anyone models anything.
- Pilot one building or system. Prove the workflow — often on MEP/plant, where maintenance value is highest — before rolling out.
- Connect to your operational platform. Integrate the pilot model with your CMMS/CAFM and let the team use it for real work.
- Standardise and scale. Turn the pilot into a template and roll it building by building, assigning ownership for ongoing updates.
BIM Maintenance in KSA & UAE: A Worked Example
Consider a large mixed-use complex in Riyadh — retail podium, offices and central plant — a profile common across Saudi Vision 2030 developments and comparable UAE assets. The owner has full construction drawings but no FM-ready model, and maintenance is reactive.
A realistic BIM for building maintenance engagement would look like this:
- Scan-to-BIM of plant rooms, risers and MEP first — the systems that drive maintenance cost — rather than the whole complex at once.
- Asset tagging and a COBie data drop so every chiller, AHU, pump, fire damper and panel carries manufacturer, interval and warranty data.
- CMMS integration so preventive schedules are generated automatically and technicians navigate to assets from the model.
- Predictive layer on critical cooling plant — given Riyadh’s summer loads, connecting chillers to condition data protects against peak-season failure.
What makes the Gulf context distinctive is the combination of extreme cooling loads, large flagship assets, and the Vision 2030 push toward smart, efficiently operated buildings — all of which reward exactly the kind of data-driven, preventive-to-predictive maintenance that BIM enables.
Common Barriers to Adopting 6D BIM
The obstacles are real but manageable:
- Upfront effort. Enabling a model for FM takes time and budget before the returns arrive. Staging (above) keeps this proportional.
- Data quality at handover. Models delivered without populated, structured asset data need enrichment — plan and verify for it.
- Software integration. BIM, CMMS/CAFM and BAS must talk to each other; interoperability standards (IFC, COBie) and a clear architecture prevent lock-in.
- Change management. Maintenance teams need training and a reason to trust the model. Piloting on a real, painful problem earns that trust faster than a mandate.
Ready to turn your building’s model into lower maintenance costs?
AMC Engineer delivers FM-ready BIM across Saudi Arabia and the UAE — from scan-to-BIM of existing assets to COBie handover and CMMS integration. Start with a free LOD 200 sample from your own drawings, delivered within 24 hours.
Frequently Asked Questions about BIM for Building Maintenance
What is 6D BIM?
6D BIM adds facility-management and lifecycle information to the 3D geometry, 4D schedule and 5D cost of a model. It carries the data — asset details, service intervals, warranties, documents — that operations and maintenance teams need after handover. Some frameworks extend to 7D for full lifecycle and sustainability management.
Is BIM only for new buildings?
No. Existing buildings are brought into BIM through scan-to-BIM: a laser scan captures the as-is condition and a maintenance-relevant model is built from the point cloud, focusing on the MEP and serviceable assets your team manages.
What is the difference between BIM and a CMMS?
BIM is the intelligent model — the source of truth for what assets exist and where. A CMMS (Computerized Maintenance Management System) is the operational software your team uses to schedule and log maintenance. BIM populates and enriches the CMMS; the two work together rather than replacing each other.
What is the difference between preventive and predictive maintenance in BIM?
Preventive maintenance is scheduled by calendar or usage — BIM makes it reliable by attaching the right interval to every asset. Predictive maintenance is condition-based and acts on live sensor data through a digital twin. Most owners start with preventive and add predictive on critical assets later.
How long does scan-to-BIM take for an existing building?
As an indicative range, a single mid-size building takes around 3–6 weeks and a large complex 2–4 months when phased. The real timeline depends on size, access to plant areas, the level of information required and how much existing documentation can be reused, so a walkthrough and defined scope are needed for an accurate schedule.
How does BIM reduce maintenance costs?
It shifts spend from reactive emergency repairs to planned preventive work, speeds up fault-finding, prevents wrong-part orders, and preserves warranty and service data that would otherwise be lost. Because operation and maintenance dominate a building’s whole-life cost, these gains compound over decades.
What ROI can I expect from BIM for building maintenance?
Published case studies cite ranges such as 15–30% energy savings, but these are illustrative, not guaranteed — actual return depends on your building, your baseline and operational discipline. The reliable outcome is directional: reactive spend moves to planned, and critical data is retained. Ask any provider to model the return against your own assets.
Which standards keep BIM maintenance data usable?
ISO 19650 governs information management across a building’s life, with Part 3 focused on the operational phase. COBie provides a structured schema for handing over non-graphical asset data, and IFC enables software interoperability. Consistent classification (Uniclass or OmniClass) lets you query assets by type.
Does BIM require expensive software?
Not necessarily. The authoring tool (commonly Revit) plus an operational platform (CMMS/CAFM) are the core. Many maintenance teams already run a CMMS; the investment is usually in enabling the model and integrating it, not in exotic software.
How does BIM improve preventive maintenance schedules?
Service intervals are attached to each asset in the model and pushed to the maintenance system, so schedules are generated automatically and nothing is forgotten. Technicians navigate to the exact asset from the model, with its history and documents attached.
Which companies offer BIM-based maintenance services in Saudi Arabia and the UAE?
AMC Engineer provides FM-ready BIM across KSA and the UAE — scan-to-BIM of existing buildings, asset tagging, COBie handover and CMMS integration. You can request a free LOD 200 sample from your own drawings, delivered within 24 hours.
How can BIM improve facility management in large complexes?
In large malls, campuses and mixed-use developments, BIM provides a single navigable asset register across many systems, enables phased rollout starting with high-value MEP and plant, and supports space, energy and compliance management alongside maintenance — the areas where scale makes manual methods break down.
Conclusion
BIM for building maintenance is where a model earns back its cost. By carrying accurate, structured asset data into the operational phase and connecting it to the tools your team already uses, BIM for building maintenance turns maintenance from a reactive scramble into a planned, evidence-based operation that cuts cost and extends asset life. The winning approach is disciplined rather than exhaustive: scope to real use cases, insist on usable data and standards over decorative geometry, assign an owner for the model, and start with one building before scaling. For owners across KSA and the UAE — especially those operating large Vision 2030-era assets — that discipline is what converts the promise of BIM into lower whole-life cost. When you’re ready, AMC Engineer can help you get there, starting with a free sample from your own drawings.
