Building Details Drawings Explained for Architects

A building is designed at 1:100 and built at 1:5. Everything that decides whether it leaks, cracks, overheats or passes authority review happens in that gap — in the detail drawings. This guide covers what construction detail drawings must show, the scales and standards they follow, how 50°C summers and coastal salinity change what you draw in Saudi Arabia and the UAE, what Baladi, Dubai Municipality and Civil Defence expect to see, and how to produce details properly from a BIM model.

What Are Building Details Drawings?

A construction detail drawing is an enlarged view of a specific junction, connection or assembly within a building, drawn at a larger scale than the plans and sections it is referenced from. Its job is to show exactly how components meet: what materials are used, in what order they are layered, how they are fixed, and how water, air, heat and structural load are managed at that point.

Details are not decoration on a drawing set. They are the instructions a foreman follows at seven in the morning when the plans do not answer the question in front of him. Every detail that is missing, ambiguous or unbuildable becomes an RFI, a delay, or a decision made on site by whoever happens to be standing there.

Why Building Details Drawings Decide Whether a Project Is Buildable

Consider a parapet on a high-rise in Riyadh. The floor plan shows a line. The section shows a height. Neither answers the questions that determine whether the roof leaks in year three: where does the waterproofing membrane terminate, how is it mechanically fixed, what protects it from UV, how does the coping cap shed water away from the joint, and what happens where the parapet meets the expansion joint.

Those questions have exactly one place to be answered: the detail. If they are not answered there, they get answered by the subcontractor, and the answer is whatever is fastest.

This is why the detail package is where design risk concentrates. The general arrangement drawings define the building. The details define whether the building works.

Three practical consequences follow:

• Detail gaps become RFIs. Every unresolved junction generates a query, and every query costs review time on both sides of the contract.
• Detail gaps become variations. When the detail is missing, the contractor prices an assumption. When the assumption is wrong, someone pays.
• Detail gaps become defects. Water ingress, thermal cracking, sealant failure and cladding movement almost always trace back to a junction that was never properly drawn.

Building Details Drawings vs Plans, Sections and Elevations

Detail drawings do not replace the general arrangement drawings — they resolve them. Each drawing type answers a different question at a different scale.

The link between them is the callout: a marked reference on the plan or section pointing to the detail sheet and number where that junction is resolved. A drawing set where callouts do not resolve to an actual detail is incomplete, however many sheets it contains.

Design Detail vs Shop Drawing Detail vs As-Built Detail

These three are routinely confused on site, and the confusion produces some of the most expensive arguments on a project. They are sequential, not interchangeable.

1. Design detail (consultant)

Produced by the architect or engineer. It communicates design intent: the materials, the performance requirement, the layering, the dimensional relationship. It typically does not specify a manufacturer’s product code, a fixing schedule, or a fabrication tolerance. It says what must be achieved, not who supplies it or how it is made.

2. Shop drawing detail (contractor or fabricator)

Produced by the contractor, subcontractor or fabricator, and submitted back to the consultant for approval. It takes the design intent and converts it into something manufacturable: actual product references, exact fixing centres, connection types, welds, tolerances, and assembly sequence. This is where LOD 400 information lives.

A shop drawing is not a redraw of the design detail. It is a proposal for how to build it, and the consultant’s approval is an approval of that proposal — not a transfer of design liability. For the full submittal cycle, see our guide to shop drawings in construction.

3. As-built detail

Produced after construction, recording what was actually installed — including the field changes that were agreed verbally, the substitutions that were approved, and the routing that had to move around an unforeseen obstruction. As-built details feed facility management, future refurbishment and, on BIM projects, the LOD 500 handover model.

The 10 Details Every Building Package Needs

Packages vary by project, but these ten recur on almost every building in the region, and they are the ones most often left unresolved.

1. Typical wall section

The vertical slice from foundation to roof showing every layer of the external wall — structure, insulation, cavity, membrane, cladding — with each level datum marked. This is the reference detail the whole envelope hangs from, and it should be drawn before any other envelope detail.

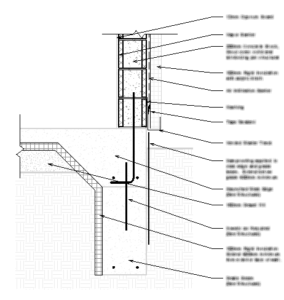

2. Foundation and ground-floor junction

Where the substructure meets the superstructure: damp-proof course position, tanking or waterproofing return, insulation continuity, and the transition from below-grade to above-grade waterproofing systems. In coastal Gulf conditions this junction also carries the salt and moisture protection strategy.

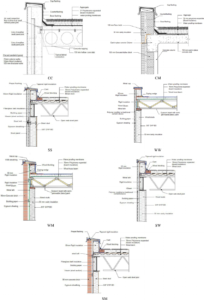

3. Roof and parapet

Membrane termination, upstand height, mechanical fixing, coping cap fall and drip, and the interface with rainwater outlets. Consistently the single most common source of envelope failure.

4. Window and door jamb, head and sill

Three details per opening type. Frame fixing, structural support over the opening, air and water sealing lines, insulation continuity around the reveal, and the sill drainage path. Thermal bridging at reveals is a routine energy-compliance failure point.

5. Expansion and movement joints

Joint width, filler material, cover plate or sealant system, and how the joint carries through floor, wall, ceiling and envelope as a continuous plane. Movement joints that stop at a finish line are not movement joints.

6. Staircase details

Riser and going dimensions, nosing profile, structural connection at landings, finish build-up, and the interface with the balustrade fixing. Regulated dimensions here are checked at inspection.

7. Balustrade and handrail fixing

Post base fixing, structural substrate, edge distances, and load path for horizontal imposed loads. On glazed balustrades, the interlayer specification and the fixing channel detail both matter for safety compliance.

8. Waterproofing details for wet areas

Bathrooms, kitchens, plant rooms and roof terraces: membrane extent, upstands, floor drain interface, threshold treatment, and the junction to adjacent dry areas.

9. MEP penetration details

Every pipe, duct or cable that passes through a fire-rated or waterproofed element needs a detail: sleeve, firestop system, collar, and reinstatement of the barrier. On Gulf projects these are heavily scrutinised at Civil Defence review. Coordination of these penetrations is exactly what BIM clash detection is for.

10. Facade and cladding fixing

Bracket type, structural fixing to slab or backing wall, thermal break at the bracket, movement allowance, and the drainage and ventilation path behind the panel. For structural elements feeding these details, see our guide to rebar detailing.

Anatomy of a Detail Drawing: Nine Elements

A detail that is missing any of these is a detail someone will have to ask about.

Drawing Scales and What Each One Reveals

Scale is not a formatting choice. It determines what information the drawing is physically capable of carrying.

A practical rule: if you find yourself unable to draw the sealant joint, you are at the wrong scale. Details drawn too small hide the exact information they exist to communicate, and details drawn too large waste sheet space and reviewer attention.

Gulf Climate: How 50°C Summers Change Your Details

This is where detail drawings produced to European or North American templates quietly fail in the region. The junction geometry may be identical; the material behaviour is not.

Thermal movement

Surface temperatures on dark cladding and exposed roof membranes in a Gulf summer far exceed ambient air temperature, and the daily swing between peak afternoon and night is substantial. Long facade runs, parapet copings, and rooftop pipework all move more than temperate-climate details assume. Movement joints need to be more frequent, sealant joints wider, and slotted fixings genuinely slotted rather than nominally so.

Vapour drive direction

In a hot, humid coastal climate — Dubai, Abu Dhabi, Jeddah, Dammam — air-conditioned interiors are cooler and drier than the outside air for most of the year. Vapour drives inward, which is the opposite of the heating-climate assumption that most standard details are built around. A vapour barrier placed on the internal face, as it would be in a cold climate, becomes a condensation trap. The detail must place the barrier correctly for the actual vapour drive direction.

UV exposure

Exposed membranes, sealants and gaskets degrade far faster under high UV loading. Details should show protection — ballast, protection board, coping overhang, or a UV-stable topcoat — rather than leaving membrane permanently exposed and relying on the product datasheet alone.

Salinity and ground conditions

Coastal sites carry chloride and sulphate exposure in groundwater and airborne salt. Below-grade waterproofing details, concrete cover to reinforcement, and fixing metallurgy at the envelope all need to reflect that exposure. A stainless grade appropriate inland is not automatically appropriate on a coastal facade.

Sand and dust

Drainage paths, weep holes, ventilated cavities and rainscreen gaps all need to work when partially loaded with fine dust. Details that rely on a narrow uninterrupted gap to drain will block.

Authority Requirements in Saudi Arabia and the UAE

A technically excellent detail that does not carry the information the reviewing authority expects will still be returned. Requirements vary by emirate, municipality and project type, so the list below is orientation — always confirm current requirements with the relevant authority before issue.

Saudi Arabia

• Saudi Building Code (SBC): the governing framework across structural, fire, mechanical, electrical and energy conservation requirements. Details should carry the specification and standard references that demonstrate compliance rather than leaving the reviewer to infer it.
• Municipal (Baladi) review: submission format, sheet conventions and required detail coverage are set at municipal level and differ between cities.
• Civil Defence: fire-rated construction, compartmentation, fire-stopping at penetrations, and egress details receive specific scrutiny. Every service penetration through a rated element should have a detail with a tested system reference.
• Mostadam: where the project targets certification, material and envelope details may need to evidence the credits being claimed.

United Arab Emirates

• Dubai Municipality: maintains BIM submission requirements for applicable project types, alongside building regulations and the Dubai green building framework (Al Sa’fat).
• Dubai Civil Defence: the UAE Fire and Life Safety Code of Practice governs fire-rated details, cladding, insulation, sealants and penetration firestopping. Certification references belong on the detail.
• Abu Dhabi DMT: its own submission and standards regime, with Estidama Pearl requirements applying to material and envelope decisions on projects targeting a rating.
• Free zone authorities: some developments operate their own review process and design guidelines in addition to municipal requirements.

Drawing Standards, Layers and Deliverables

Consistency across a detail package is what makes it reviewable. Three areas cause most of the friction.

Layer and file naming

ISO 13567 provides the international convention for layer naming; many regional consultants work to a client or project-specific variant. Whichever applies, it should be fixed in the BIM Execution Plan or CAD standard before production starts — retrofitting a layer convention across a completed package is days of work with no design value.

Information management

ISO 19650 sets the framework for managing information across the project lifecycle, including naming, status codes and the common data environment. Detail sheets should carry a status code that distinguishes work in progress, shared, issued for construction and as-built.

Deliverable formats

Producing Detail Drawings from a BIM Model

Model-derived details stay coordinated with the design. Manually drafted details drift from it. Most real packages contain both, and the discipline is knowing which is which.

Callout views

A callout creates a live view of the model at a larger scale, cropped to the region of interest. Because it reads the model geometry, a change to the wall type propagates into the detail automatically. This is the correct approach for any junction whose geometry is genuinely modelled.

Detail components and drafting views

Not everything belongs in the model. Sealant beads, membrane laps, flashing profiles and fixing brackets are usually added as 2D detail components over a callout, or drawn entirely in a drafting view for standard details reused across the project. The trade-off is explicit: drafting views are fast and reusable, but they do not update when the model changes.

Level of development

Detail fidelity follows the model’s LOD. LOD 300 supports design details; LOD 400 carries the fabrication information shop drawings need. Our guide to BIM detail levels from LOD 100 to 500 covers what each level does and does not include.

Sheet assembly and issue

Details are placed on sheets with consistent titles, scales and callout numbering, then issued from the common data environment with a status code and revision. Our BIM documentation service covers the full package assembly, and for fabrication-level output see shop drawings up to LOD 400.

Seven Detail Failures That Cost Money on Site

The Pre-IFC Detail Review Checklist

Run this before any detail package is issued for construction.

1. Every callout on every plan and section resolves to an existing detail.
2. Every detail carries a stated scale and a graphic scale bar.
3. Every material is annotated with a specification clause reference, not a generic name.
4. Level datums are shown and consistent with the structural drawings.
5. Grid references are present and match the structural grid.
6. Waterproofing is continuous through the detail with no unexplained termination.
7. Insulation is continuous, and every thermal bridge is either eliminated or acknowledged.
8. Movement is accommodated, and joints run continuously through all layers.
9. Every fire-rated penetration references a tested firestop system.
10. Fixings show substrate, type, centres and edge distances.
11. Tolerances and buildability have been reviewed by someone with site experience.
12. Title block status, revision number and date are correct, and the issue is logged in the CDE.

Frequently Asked Questions

Conclusion

Detail drawings are where a design becomes a building. They carry the information that plans and sections physically cannot: how materials meet, how water and heat are managed, how movement is absorbed, and how the assembly satisfies the authority reviewing it.

In Saudi Arabia and the UAE, that work carries an additional layer. Details imported unchanged from temperate-climate practice can be geometrically correct and still fail, because vapour drive, thermal movement, UV loading and salinity behave differently here. Detailing well in this region means drawing for the climate the building actually stands in, and for the authority that will actually review it.
