BIM Architecture: The Complete Guide for Architects in Saudi Arabia & UAE

What BIM Architecture Actually Is

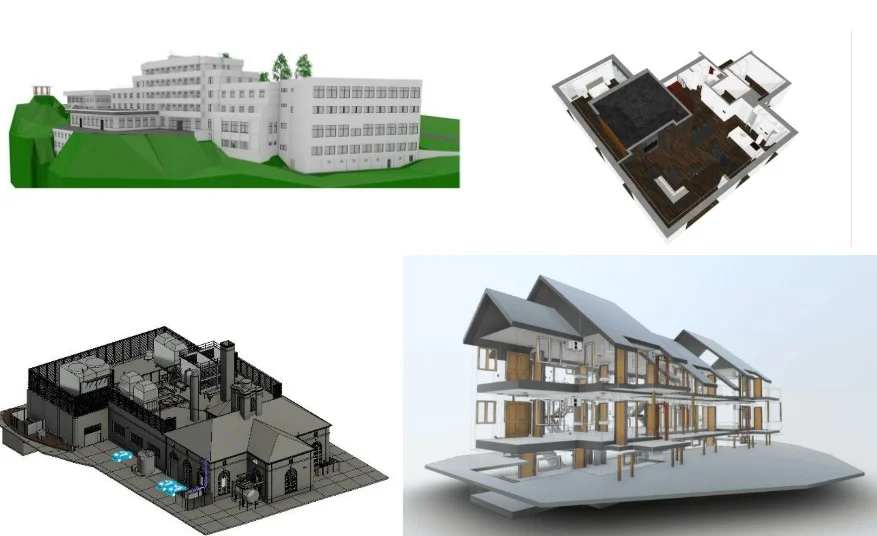

Building Information Modeling is the process of creating and managing a digital representation of a building in which the geometry and the information are inseparable. A wall in a BIM model is not a set of lines; it is an object that knows its type, its fire rating, its acoustic performance, its cost code, and its relationship to the slab above and the room on either side. Change the floor-to-floor height and the wall, the door in it, and the schedule that counts it all respond.

That distinction — objects carrying data rather than lines representing shapes — is what separates BIM from every drafting tool that came before it. The model becomes a single source of truth that architects, structural engineers, MEP designers, contractors, and eventually the building’s operators all draw from and contribute to.

It helps to be precise about three terms that get used interchangeably and shouldn’t be:

• The model is the data-rich 3D representation of the building.
• BIM is the process and methodology of producing, coordinating, and managing that model across a project.
• A BIM tool (Revit, ArchiCAD, and others) is the software used to author it. Owning the software is not the same as practising BIM — plenty of teams model in Revit while still working in disconnected, drawing-led silos.

For architects specifically, the shift is from producing a coordinated set of drawings to producing a coordinated model from which drawings are extracted. The drawings become an output, not the deliverable itself.

BIM vs CAD — What Actually Changes for Architects

The comparison is worth doing carefully, because the difference is not “2D versus 3D.” CAD can produce 3D geometry; BIM’s advantage is that its geometry is intelligent and connected. The table below sets out what actually changes at the desk.

The practical consequence is where the value lands. In CAD, most of an architect’s coordination effort is spent keeping drawings consistent with each other. In BIM, that consistency is a property of the model, which frees the same effort for design resolution and cross-discipline coordination — the work that actually reduces risk on site. This is also why AMC’s architecture engineering workflow treats the model, not the drawing set, as the primary deliverable.

The BIM Dimensions: 3D to 7D

The “dimensions” of BIM are a shorthand for the kinds of information layered onto the geometric model. Most competitor guides stop at 5D; for architects working on lifecycle-focused Gulf projects, 6D and 7D are increasingly where the client’s real interest sits.

Level of Development: LOD 100 to 500

Level of Development (LOD) is the framework that answers a question every architect faces: how much detail should this element carry at this stage? Under-modelling produces a model that cannot be relied on; over-modelling burns hours producing detail nobody will use. LOD gives the whole team a shared vocabulary for what a given element actually represents. For a vendor-neutral reference definition, see NBS’s explainer on Level of Development.

The most common mistake is treating LOD as a single project-wide setting. In reality it varies by element and by stage: a façade panel being fabricated off-site may need LOD 400 while a partition in the same model sits at LOD 300. AMC’s full breakdown is in BIM detail levels: the complete guide to LOD 100–500, with the operational end covered in what LOD 500 really means.

How BIM Works Across the Project Lifecycle

BIM’s value compounds when the same model carries through the project rather than being rebuilt at each stage. For architects, the model touches every phase they are involved in — and several they hand off.

Concept and schematic design

Early massing and spatial studies benefit from BIM even at low detail, because area schedules, orientation, and preliminary performance analysis come straight from the model. This is where parametric modeling earns its place: expressing design intent as rules means options can be generated and compared quickly against constraints. See also schematic design for how this stage feeds the next.

Design development and documentation

As the design resolves to LOD 300, the model becomes the source for plans, sections, elevations, and schedules simultaneously. Coordination with structure and MEP intensifies here, and the model’s ability to keep every view consistent is what prevents the drawing-set drift that plagues CAD workflows.

Coordination and construction

Federated with the structural and MEP models, the architectural model is checked for interferences before anyone mobilizes. The model then generates the documents trades build from — coordinated layouts, details, and schedules. This is the stage where clash detection and BIM coordination convert design effort into avoided site rework.

Handover and operation

At completion, a structured asset dataset — not a box of O&M binders — passes to the operator. Done properly, this becomes the basis of a digital twin and feeds day-to-day facility management. The catch is that this dataset cannot be retrofitted cheaply — its quality is determined by decisions made at the very start of design.

Core Benefits for Architects

The benefits worth talking about are the measurable ones. The industry quotes broad figures — coordinated BIM workflows are commonly reported to reduce RFIs by around 25% and design-stage errors by roughly 30% — but the mechanism behind each benefit matters more than the headline number.

Fewer errors caught earlier

Because disciplines coordinate in a shared model, interferences surface in review weeks before mobilization rather than during installation. A clash resolved as a model revision costs a fraction of the same clash discovered on site as demolition plus rework.

Design intent survives to construction

The gap between what an architect designed and what gets built usually comes from information loss between the design set and the field, not from poor design. A coordinated model that carries intent as data — not just as annotation — closes that gap. Fewer interpretations mean fewer compromises made without the architect in the room.

Faster, more confident iterations

When a change propagates through the model automatically, exploring an option costs hours instead of days. That changes the economics of design: teams test more alternatives and reach review with better-resolved proposals.

Reliable quantities from the model

Schedules and quantities extracted from the model update when the design updates, giving estimators a live source rather than a manual re-count on every revision. This is the single largest accuracy gain available to the commercial side of a project.

Performance and sustainability built into design

With 6D data, energy, daylight, and embodied-carbon analysis inform the design while it is still cheap to change — rather than validating a design that is already fixed. On Gulf projects with demanding thermal loads, this moves from a nice-to-have toward a client expectation.

BIM Software for Architects

No tool makes a team good at BIM, but the choice does shape the workflow. These are the platforms an architectural practice in the region will actually encounter, with an honest note on where each fits.

Two practical points. First, interoperability matters more than any single tool: the IFC (Industry Foundation Classes) open format, maintained by buildingSMART, is what lets a Revit architectural model, an ArchiCAD element, and a structural model exchange data without everyone owning the same licence. Second, the tools keep moving — for what’s changing in the most-specified platform, see what’s new in Revit 2027.

Standards and the Common Data Environment

The part of BIM that separates a professional deliverable from a modelled-but-chaotic one is not the geometry — it is the information management around it. On any project with more than one party, this is governed by standards.

ISO 19650

ISO 19650 is the international framework for managing information across the built-asset lifecycle. It defines how information is named, structured, exchanged, reviewed, approved, and archived, and it introduces the concept of the level of information need — specifying exactly what each party must deliver, and no more. Across the Gulf, ISO 19650 alignment is increasingly written into contracts, so getting it right at tender stage is what separates a compliant submission from a rejected one. AMC’s reference is ISO 19650 BIM standards.

The common data environment (CDE)

The CDE is the single agreed source through which all project information flows — models, drawings, documents, and the status of each. It is what makes multi-party delivery workable: everyone knows which version is current, what is shared versus in-progress, and what has been approved. Retrofitting a CDE onto a project already in motion rarely works, because people keep using the email chains they started with. See common data environment in BIM.

The BIM Execution Plan (BEP)

Before modelling begins, the BEP records who models what, to what LOD, in which software, on what shared coordinate system, and by when. Projects that skip this stage produce models that cannot be federated — and then blame the software. See how to build a BIM execution plan.

BIM in Saudi Arabia and the UAE

This is the context every competitor guide omits, and it is exactly where a design team bidding regional work needs clarity. BIM in the Gulf is not an efficiency choice made by individual practices — it is increasingly a contractual condition set by clients.

Why the region moved fast

The scale of the programmes forced it. Saudi Arabia’s Vision 2030 giga-projects — NEOM, the Red Sea developments, Qiddiya, Diriyah — involve dozens of design packages from different consultants that must federate into a coherent whole. At that scale, uncoordinated drawing-led delivery is not recoverable by adding labour; an enforced common data environment, a shared coordinate system, and agreed information requirements are the only way the work holds together. The same logic applies to the UAE’s major transport and urban programmes.

Mandates and expectations

There is no single universal BIM law across the region, but the practical position is unambiguous: public and semi-public clients specify BIM deliverables contractually on most large work, and Dubai has required BIM on certain building types for years. Globally, more than 30 countries mandate BIM on major infrastructure — the Gulf sits firmly inside that trend. For architects, the implication is that ISO 19650-aligned information requirements should be treated as an expected tender condition, not an optional extra. AMC’s regional overview is BIM in Saudi Arabia.

What regional projects demand of an architectural model

• Existing-condition accuracy. Renovations, expansions, and tie-ins to existing infrastructure need scan-to-BIM capture rather than reliance on old drawings.
• Interface coordination on mixed-use masterplans. Shared basements, district cooling, and utility corridors mean the hard modelling problem is the interface between buildings, not any single building.
• Lifecycle handover data. On assets with long operating lives — airports, rail, hospitals — the handover dataset is worth more to the client than the construction drawings, pushing 6D and 7D requirements onto the design team early.
• Climate-driven performance. Thermal load makes 6D energy and daylight analysis a routine expectation, not a specialist add-on.

Challenges of Adopting BIM — and How to Solve Them

A guide that only lists benefits is useless to anyone making a real decision. These are the genuine obstacles, with the response that actually works.

How to Start Adopting BIM

The realistic path is incremental and evidence-led, whether you are a small practice or a large one.

1. Define the information you need at the end, first. Work backwards from what the operations team and the client require at handover. This single decision determines your LOD, dimensions, and software — and it is almost always made too late.
2. Write a real BIM Execution Plan. Not a template with the project name swapped. Roles, software versions, shared coordinate system, federation schedule, naming conventions, approval workflow.
3. Stand up the CDE before the first model is issued. The mechanism that makes multi-party delivery workable has to exist before people default to email.
4. Pick one project — and one scope within it. Prove the workflow on a bounded package (a single building, or even one façade system) before committing the whole practice.
5. Set a coordination cadence and hold it. Regular federated review with named owners for each clash category and a closure deadline. The meeting discipline, not the software, produces the result.
6. Measure against a baseline. Compare rework rate, RFI volume, and estimate accuracy against a comparable prior project. Scale from evidence, not enthusiasm.

For architects, the connecting thread across all six steps is that BIM Architecture adoption is a project-delivery decision, not a drafting upgrade. It touches how you programme, how you cost, and how you hand over — which is why it pays to treat the first project as a controlled pilot rather than a leap. AMC works with design teams at exactly this stage, from architecture engineering through full BIM delivery and lifecycle asset management.

Frequently Asked Questions

BIM Architecture: The Bottom Line

BIM Architecture is best understood not as a better way to draw, but as a different way to work — one where the building exists as coordinated information first and as drawings second. For architects, that changes the deliverable, the coordination effort, the commercial workflow, and the handover, all at once. The benefits are real and measurable, but so are the costs and the discipline required, and pretending otherwise helps no one making an actual decision.

For design teams working across Saudi Arabia and the UAE, the strategic reality is simple: clients are increasingly specifying these capabilities contractually, so the question is no longer whether to adopt BIM but how to do it on a real project without absorbing the cost of learning on a live programme. Starting with a bounded scope, a real execution plan, and a clear view of the handover you owe is what turns BIM Architecture from an expense into an advantage.
